• R 19,000.00
  • - 0%


Ride smoother, ride lighter, ride longer. Go further and go faster as you explore the open road on the beautiful, smooth, lightweight Fastback AL 105 by Schwinn. Equipped with Schwinn® road-tuned N LITENED PLATINUM® hydroformed aluminum road frame and Schwinn® race carbon fork, this bike is designed to provide performance road geometry for expert level riding. The full Shimano® 105 11-speed drivetrain with 50/34T compact crank and 105 STI shifters deliver premium gearing and efficient shifting, while the Shimano® 105 dual-pivot caliper brakes offer crisp, all condition stopping. Alex® R500 double-wall rims with Schwinn® S1 sealed bearing hubs offer high quality performance without weighing you down. And to top it all off, the Schwinn® S1 race saddle and performance bar tape provide lasting comfort on each and every ride. Like all Schwinn bikes, the Fastback AL 105 comes with a limited lifetime warranty for as long as you own the bike. Go out and explore the world one ride at a time with the Fastback Carbon 105. Enjoy the freedom of owning a Schwinn.

Available at the following retailers:



  • SizesXS, SM, MD, LG, XL
  • ColorsGrey


  • FrameN LITENED Platinum aluminum 700c road tuned geometry internal cable routing 10 mm x 135 mm dropout replaceable hanger semi tapered headtube master
  • ForkSchwinn carbon race 700c aluminum steerer 9 mm x 100 mm QR

  • RimsAlex R500 aluminum double wall 28H
  • Front HubSchwinn S1 aluminum sealed bearings 9 mm x 100 mm QR 28H
  • Rear HubSchwinn S1 aluminum sealed-bearing 10 mm x 130 mm QR 28H
  • Spokes14G, stainless steel
  • Tire Size700c x 25c
  • TiresSchwinn road 700c x 25c wire bead
  • Tire TypeWire bead
  • GripsSchwinn road gel cork tape
  • HandlebarSchwinn compact double-butted aluminum 400 mm - 440 mm 31.8 mm clamp
  • SaddleSchwinn S1 race steel rails
  • SeatpostAluminum 300 mm 16 mm offset 31.6 mm
  • StemSchwinn aluminum threadless - 7° rise 31.8 mm clamp


  • Bottom BracketShimano sealed external bearing 68 mm
  • Chain11-speed
  • CrankShimano 105 FC-R7000 50/34T
  • ShiftersShimano 105 ST-R7000 22-speed
  • Front DerailleurShimano 105 FD-R7000 34.9 mm clamp
  • PedalsSchwinn road nylon toe clips and straps
  • Rear CogsShimano CS-R7000 11-speed 11-32T
  • Rear DerailleurShimano 105 RD-R7000


  • Front BrakeShimano 105 BR-7000 dual pivot caliper aluminum
  • Rear BrakeShimano 105 BR-7000 dual pivot caliper aluminum

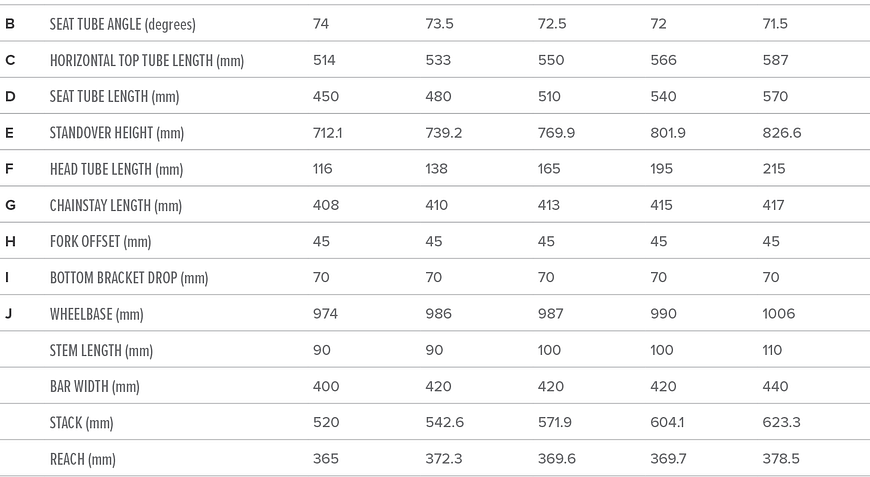

Geometry & Sizing
